Soft Water Pipe Marker PMW68a

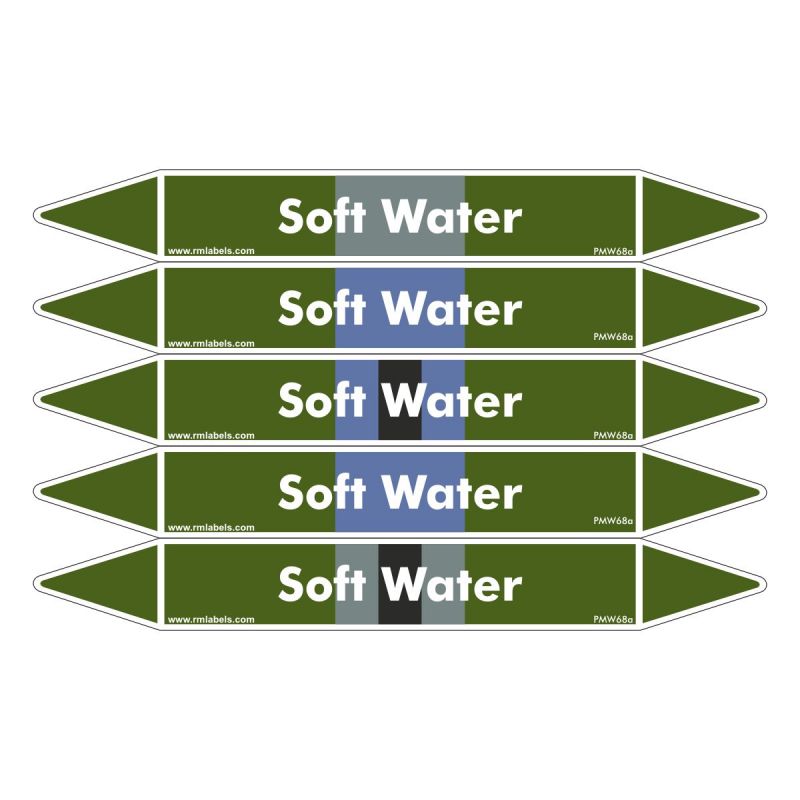

Self-adhesive vinyl Soft Water pipe marker with two directional arrows. This pipe marker is available in four different styles in order to comply with the new BS1710 2014 standard for pipework containing water:
For Potable Water derived from the Public Water Supply the pipe marker has a green 12-D-45 background with an auxiliary blue 18-E-53 centre band. The text is printed over the centre of the pipe marker in white.
For Potable Water derived from Any Other Source the pipe marker has a green 12-D-45 background with a flint grey 00-A-09 centre band. The text is printed over the centre of the pipe marker in white.
For Non-Potable Water derived from the Public Water Supply the pipe marker has a green 12-D-45 background with an auxiliary blue 18-E-53 centre band and a black 00-E-53 band in the middle of the pipe marker. The text is printed over the centre of the pipe marker in white.
For Non-Potable Water derived from Any Other Source the pipe marker has a green 12-D-45 background with a flint grey 00-A-09 centre band and a black 00-E-53 band in the middle of the pipe marker. The text is printed over the centre of the pipe marker in white.
Colours conform to BS1710:2014 and BS4800:2011
Available in 3 sizes with discounted prices when you buy 20 or more pipe markers, and a further discount if you buy 50 or more pipe markers:
Size A: 27mm high x 138mm long + arrows (overall length 215mm) £1.75 each
20+ £1.60 each, 50+ £1.50 each
Size B: 40mm high x 275mm long + arrows (overall length 375mm) £3.70 each
20+ £3.45 each, 50+ £3.15 each
Size C: 60mm high x 450mm long + arrows (overall length 600mm) £6.50 each
20+ £5.85 each, 50+ £5.40 each
Sizes A and B are sold in packs of 5 pipe markers, Size C pipe markers are sold in singles
Cut off the relevant arrow to indicate the direction of flow.
Size A: Suitable for pipework and any lagging up to 50mm diameter
Size B: Suitable for pipework and any lagging up to 100mm diameter
Size C: Suitable for pipework and any lagging above 100mm diameter
Choose the size you require from the drop-down box above and the correctly coloured pipe marker for the source of water, and then add the quantity you want to the shopping basket. Any discounts available will be shown in the shopping basket.
Please note when viewing the pipe markers online the colours may vary
Manufacturer | R M Labels |
---|
